Manufacturer: Shandong Yuntang Intelligent Technology Co., Ltd. Product Model: YT-LS Halogen Moisture Analyzer Measurement Principle: Gravimetric loss-on-drying method with halogen heating Weighing Range: 0~110g Weighing Readability: 0.001g Moisture Measurement Range: 0.01%~100% Moisture Resolution: 0.01% Temperature Control Range: 50℃ ~ 200℃; temperature adjustment step: 1℃ Heating Source: High quality halogen lamp Operation Screen: Color capacitive touch screen, multi-language optional Test Mode: Timed test, automatic weight-change termination, manual stop Data Storage: Built-in memory, store hundreds of test data and heating curves Data Export: USB flash disk export (CSV format), optional network transmission Output Device: Optional built-in thermal printer, print test report and curve Calibration: External standard weight calibration Working Environment: Temperature 5℃ ~ 40℃, relative humidity ≤80%RH (non-condensing) Power Supply: 220V/110V optional, 50/60Hz

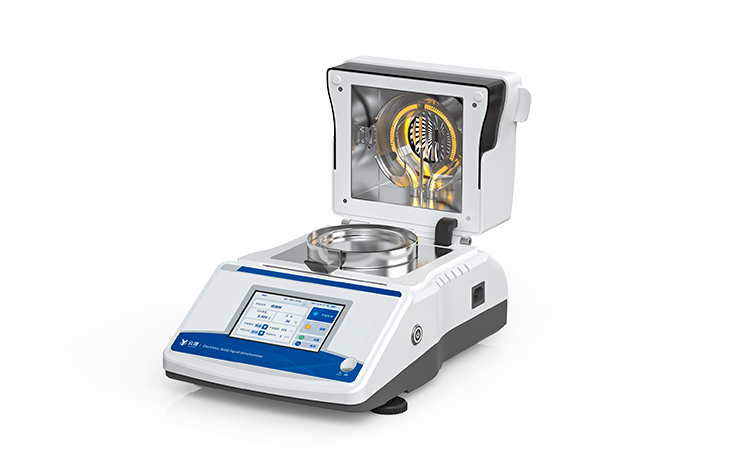

Main structure of YT-LS halogen moisture analyzer includes high precision weighing unit, halogen heating lamp module, temperature sensor, closed heating cover, touch screen control system and data storage module. The weighing unit is installed at the bottom of the instrument with shock-proof and wind-proof protection structure to reduce airflow interference during heating. The top heating cover adopts heat insulation material to prevent high temperature from spreading outward and protect operators from scald.

Standard accessories include sample aluminum pans, tweezers, standard calibration weight, glass fiber pads, power cable, user manual and operation video. Yuntang supports customized voltage and plug standards for different countries to meet export requirements. Every instrument is equipped with factory test certificate, which can be used for enterprise quality inspection and third-party audit.
