Introduction

Scientific soil testing and formula fertilization are core methods for improving quality and efficiency in modern agriculture, protecting cultivated land quality, and achieving efficient nutrient utilization. To meet the needs of rapid testing in agricultural technology extension, agricultural materials management, planting production, and fertilizer testing, Shandong Yuntang Intelligent Technology Co., Ltd. launches the YT-TRB Soil Nutrient Rapid Tester based on authoritative qualifications and technical accumulation. This white paper systematically explains the equipment’s technical principles, functional characteristics, operating specifications, and industry applications, providing users with professional, standardized, and implementable guidance for soil testing and formula detection.

Shandong Yuntang Intelligent Technology Co., Ltd. is a national high-tech enterprise, a national-level specialized and sophisticated enterprise, and an innovative small and medium-sized enterprise in Shandong Province. It has three core certifications: ISO9001 Quality Management System, Occupational Health and Safety Management System, and Environmental Management System, as well as a number of credit certifications such as 3A Enterprise Credit Rating and AAA-level Integrity Management Demonstration Unit. The company has a professional R&D team of more than 100 people and 150 core technology patents, with more than 100 after-sales service outlets nationwide, providing 24-hour rapid response and national joint guarantee services. Products strictly comply with national standards such as GB/T 5009, with traceable and compliant data. It is a leading manufacturer with complete qualifications, leading technology, and reliable services in the field of agricultural testing equipment in China.

Table of Contents

1.    Basic Product Information

2.     Core Technologies and Functional Features

3.     Detailed Technical Parameters

4.     Application Scenarios and Industry Adaptation

5.     Accessories and Consumables Configuration

6.     Model Comparison and Selection Suggestions

7.     Instrument Installation Steps

8.     Instrument Operation Steps

9.     Sample Testing Steps

10.  Instrument Maintenance Specifications

11.  White Paper Summary

Basic Product Information

·         Product Name: YT-TRB Soil Nutrient Rapid Tester

·         Manufacturer: Shandong Yuntang Intelligent Technology Co., Ltd.

·         Product Positioning: Practical integrated rapid testing equipment for agricultural material dealers and agricultural technology systems

·         Core Uses: Quantitative detection of nitrogen, phosphorus, potassium, organic matter, pH, salinity, and medium and trace elements in soil, fertilizer, and plants

·         Design Structure: Integrated aluminum alloy chassis with built-in reagents, integrating medicine, equipment, and instrument

·         Testing Objects: Soil, chemical fertilizers, compound fertilizers, organic fertilizers, plant samples

·         Applicable Users: Grassroots agricultural technology stations, agricultural material dealers, planting bases, fertilizer manufacturers, family farms

Core Technologies and Functional Features

1.    Integrated Portable Design

Adopts an integrated aluminum alloy chassis with reagents, sturdy and durable, easy to carry, equivalent to a small mobile laboratory, suitable for field and on-site testing.

2.     Highly Stable Optical System

Adopts high-brightness LED light source with a service life of up to 100,000 hours, silicon semiconductor signal reception, stable and consistent light source; the colorimetric tank adopts a single-channel dual-light path design, no mechanical displacement and wear, precise optical path positioning, ensuring detection accuracy.

3.     High Resolution and Intelligent Operation

Microcomputer digital control, touch buttons, LCD display, resolution up to 0.001, simplified operation process, greatly reducing manual errors and labor intensity.

4.     Comprehensive Multi-item Detection

Capable of measuring soil available nitrogen, phosphorus, potassium, total nitrogen, phosphorus, potassium, organic matter, moisture, pH, salinity, as well as 6 medium and trace elements such as calcium, magnesium, sulfur, boron, chlorine, and silicon; it also supports rapid determination of nutrients in chemical fertilizers, organic fertilizers, and plants.

5.     Efficient Batch Detection

Soil nitrogen, phosphorus, and potassium can be extracted and determined simultaneously at one time. Testing NPK for a single soil sample takes ≤30 minutes, and testing 8 soil samples simultaneously takes ≤1 hour, leading the industry in testing speed.

6.     Dual-purpose Power Supply (AC/DC)

Supports AC 180V-240V and DC 12V power supply, connectable to vehicle power supply, suitable for mobile testing in outdoor environments without electricity.

7.     One-button Printing and Formula Output

Built-in patented thermal printer (Patent No.: ZL201821777724.7), one-button printing of results, and automatic scientific fertilization recommendation.

8.     Ready-to-use Finished Reagents

Matching finished reagents are ready to use without on-site preparation, reducing operation difficulty and improving detection efficiency and consistency.

Detailed Technical Parameters

1.    Power Supply: AC 180V～240V/50Hz; DC 12V±5V (vehicle-mounted supported)

2.     Measuring Range and Resolution: 0.001-9999, resolution 0.001

3.     Stability: Drift < 0.003 within 3 minutes

4.     Linear Error: ≤3% (0.03, copper sulfate detection)

5.     Repeatability Error: ≤0.5% (0.005, potassium dichromate solution)

6.     Sensitivity: Red light ≥4.5×10⁻⁵; Blue light ≥3.17×10⁻³

7.     Wavelength Range: Red light 620±8nm; Blue light 440±8nm

8.     Moisture Detection: Range 0-100%, accuracy ±0.5%

9.     Testing Speed: Single soil sample NPK ≤30 minutes; 8 soil samples ≤1 hour

10.  Data Output: Built-in thermal one-button printing, patented design

11.  Performance Indicators: Stability 6 times better than the national standard JJG179-90, repeatability reaching the level of grating spectrophotometer

Application Scenarios and Industry Adaptation

1.    Grassroots Agricultural Technology Extension: Rapid field soil testing, formula fertilization guidance, cultivated land quality monitoring

2.     Agricultural Material Dealers: Soil testing and fertilizer formulation, fertilizer authenticity identification, customer service and product promotion

3.     Planting Bases/Farms: Soil nutrient census, precise fertilization, yield and quality improvement

4.     Fertilizer Manufacturers: Raw material testing, finished product testing, quality control, formula optimization

5.     Farmers/Family Farms: Home testing, on-demand fertilization, reducing waste and costs

6.     Soil Census Projects: Outdoor batch rapid testing, rapid data collection

Accessories and Consumables Configuration

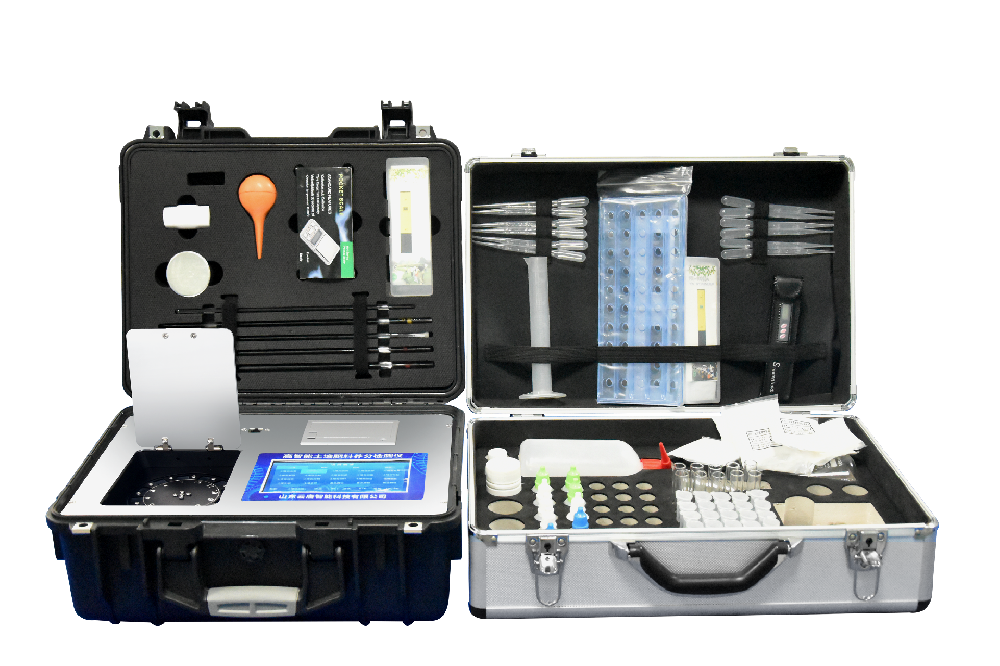

Standard Configuration of Instrument Case

·         Host (built-in printer) ×1, pH electrode ×1, TDS meter ×1, cuvettes ×4

·         Electronic balance (100g/0.01g) ×1, fuses ×2, host power cord ×1

·         DC 12V cable ×1, graduated pipettes (1/5/10ml) ×1 each

·         Instruction manual, certificate of conformity ×1 set

Standard Configuration of Reagent Case

·         Soil nutrient testing reagents ×1 set (100 tests), 100ml Erlenmeyer flasks ×2

·         Volumetric flask ×1, wash bottle ×1, angle spoon ×1 set, qualitative filter paper ×1 box

·         Suction bulb ×1, small aluminum box ×1, 50mL graduated cylinder ×1, 10ml centrifuge tubes ×30

·         Centrifuge tube rack ×1

Common Consumables: Soil nutrient testing reagents, fertilizer testing reagents, printing paper, cuvettes, centrifuge tubes

Model Comparison and Selection Suggestions

Yuntang soil nutrient detectors cover full-scenario needs with clear positioning for each model:

·         YT-TR60 (59800 RMB): High-end multi-channel intelligent model, suitable for large testing institutions and scientific research units

·         YT-TRX07 (36800 RMB): High-precision scientific research model, suitable for laboratories and project monitoring

·         YT-TR24, YT-TRX06 (26800 RMB): Multi-functional intelligent model, suitable for large-scale bases and agricultural technology centers

·         YT-TN1, YT-TR04 (9800 RMB): Mid-to-high-end full-function model, suitable for professional testing services

·         YT-TRD (8700 RMB): Practical enhanced model, suitable for batch testing needs

·         YT-TRC (6800 RMB): Standard testing model, suitable for conventional planting bases

·         YT-TR02 (5000 RMB): Basic portable model, suitable for small-scale planting

·         YT-TRB (Main Recommendation): Integrated model for agricultural technology and agricultural materials, portable, efficient, and moderately priced

·         YT-TR01, YT-TR1 (3200/3000 RMB): Entry-level simple model, suitable for farmers’ own use

·         YT-ZSA (2800 RMB): Simple basic model, suitable for rapid screening

Selection Suggestion: Agricultural material dealers, grassroots agricultural technology stations, and mobile soil testing services give priority to YT-TRB, with integrated design, finished reagents, portability, efficiency, and the highest cost-performance ratio.

Instrument Installation Steps

1.    Unboxing and Verification: Check that the accessories in the instrument case and reagent case are complete and free of damage

2.     Host Placement: Place the host on a stable, dry, and non-glare operating table

3.     Power Connection: Connect to AC power or DC 12V vehicle power according to the usage scenario

4.     Accessory Installation: Install the pH electrode and TDS meter, connect the power cord and DC cable

5.     Printer Debugging: Load printing paper and test that the printing function is normal

6.     Reagent Inspection: Check the model and quantity of testing reagents to ensure they are within the validity period

7.     Preheating and Calibration: Turn on the machine and preheat for 10 minutes, perform calibration procedures to ensure stable optical path

8.     Tool Preparation: Place auxiliary equipment such as Erlenmeyer flasks, volumetric flasks, pipettes, and centrifuge tubes in place

Instrument Operation Steps

1.    Power-on Preheating: Turn on the host power, preheat for 10 minutes, and enter the main detection interface

2.     Item Selection: Select soil, fertilizer, or plant testing mode according to needs

3.     Instrument Calibration: Perform optical path calibration and zero calibration using standard solutions

4.     Sample Pretreatment: Extract, shake, filter, and stand according to the reagent instructions

5.     Colorimetric Detection: Pour the test solution into a cuvette and place it in the instrument’s colorimetric tank for detection

6.     Parameter Reading: The instrument automatically calculates and displays indicators such as nutrient content, pH, and salinity

7.     Fertilization Formula: The system automatically generates scientific fertilization recommendations based on the test results

8.     Data Printing: Press one-button printing to output the test report and formula information

9.     Shutdown and Maintenance: Exit the operation interface, turn off the power, and clean the cuvette and host

10.  Storage and Packing: Put the instrument, reagents, and accessories back into the aluminum alloy case in categories

Sample Testing Steps

Soil Sample Testing Process

1.     Sample Collection: Collect 0-20cm plow-layer soil using the five-point sampling method, air-dry, grind, and sieve

2.     Weighing and Extraction: Weigh the soil sample with an electronic balance, add the corresponding extractant, and shake for extraction

3.     Standing and Filtering: After standing and clarifying, filter with qualitative filter paper to obtain the test supernatant

4.     Reagent Reaction: Add chromogenic agent according to the instructions, mix well, and stand for full reaction

5.     Colorimetric Measurement: Inject the reaction solution into a cuvette and place it in the host for colorimetric detection

6.     Data Reading: The instrument displays values such as available nitrogen, available phosphorus, available potassium, and organic matter

7.     Indicator Judgment: Compare with nutrient classification standards to judge soil fertility level

8.     Report Output: Print the test results and fertilization formula to complete the detection

Fertilizer Sample Testing Process

1.     Crush and weigh the fertilizer sample, add extractant for full dissolution and extraction

2.     Filter, constant volume, add chromogenic agent for reaction

3.     Perform colorimetric test on the machine, automatically read the content of nitrogen, phosphorus, potassium, organic matter, pH, etc.

4.     Print the report and judge whether the fertilizer nutrients meet the standard

Instrument Maintenance Specifications

Daily Maintenance

·         Clean the cuvette and colorimetric tank after each use to avoid reagent residue and crystallization

·         Keep the host appearance dry and clean, and strictly prohibit liquid from penetrating into the chassis

·         Replace the printing paper in time when it is insufficient, and keep the print head clean

·         Clean the pH electrode after use and soak it in the protective solution to extend its service life

·         Remove dust and soil from the chassis in time after outdoor use, and take moisture-proof measures

Regular Maintenance

·         Perform optical path calibration and zero calibration once a week to ensure detection accuracy

·         Check the power interface, circuit, and fuse every month to ensure normal connection

·         Clean the dust of optical components and circuit boards quarterly, operated by professionals

·         Store reagents in a cool and dry condition, regularly check the validity period and replace them in time

Precautions

·         Do not disassemble the host and optical components without permission to avoid damaging the core structure

·         Only use Yuntang original supporting reagents and accessories to ensure accuracy and stability

·         When not in use for a long time, fully charge the backup power supply and turn on the machine once a month

·         Contact the manufacturer’s after-sales service directly for equipment failures, do not repair by yourself

·         Use in strict accordance with the operating procedures to extend the service life of the equipment

White Paper Summary

The YT-TRB Soil Nutrient Rapid Tester is an integrated, portable, and cost-effective rapid testing equipment built by Shandong Yuntang Intelligent Technology Co., Ltd. specifically for grassroots agricultural technology systems and agricultural material dealers. With core advantages such as integrated chassis and reagents, high-stability optical system, efficient batch detection, ready-to-use finished reagents, and dual-purpose AC/DC power supply, it achieves rapid and accurate detection of multiple items in soil, fertilizer, and plants. The equipment is easy to operate, easy to carry, reliable in accuracy, and complete in after-sales service, fully adapting to the needs of domestic grassroots soil testing and fertilizer formulation, mobile testing, fertilizer identification, and precise planting. With perfect services such as direct manufacturer supply, national joint guarantee, one-to-one teaching, and lifelong technical support, Yuntang provides long-term stable protection for users, making it an ideal practical equipment in the field of modern agricultural soil testing and formula fertilization.
